Linear Garage Door Operator/Opener
Linear offers a variety of products that will suit any need. Our line of professional garage door operators offers performance and innovation, from pioneering radio frequency remote controls for everyday use, to the latest in monitoring and accessing the garage from a smart phone. And our DC-powered garage door openers offer battery backup for compliance with California SB-969 requirements.
We also use many of the same parts for our garage lines from model to model, allowing dealers to mix and match for individual customer needs, while reducing inventory. Linear is the brand of choice for residential and light duty commercial installers.

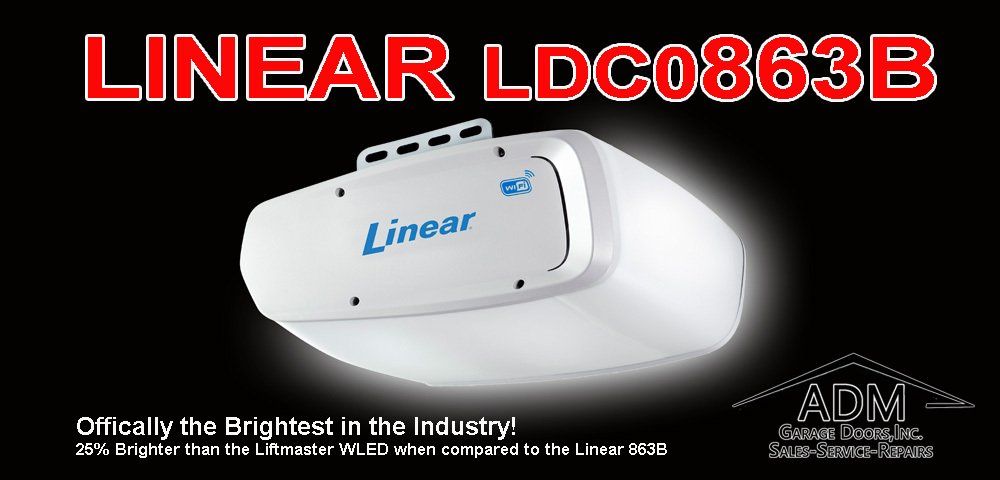

Linear LDCO863B
Linear LDCO863B
Our new LDCO863B includes the most advanced lighting features on the market. Featuring 3 LED panels and a total of 4,100 lumens, our new technology will never leave you in the dark.
- Control and monitor the LDCO863B garage door operator via mobile device with the Linear PRO Access app
- Offers up to ten authorized users passive/hands-free opening and closing of the LDCO863B garage door
- Free app can be used with most smartphones and tablets
Features
- Ultra-Smooth and Quiet
- Industry leading performance with variable speed operation, soft start/stop, and ultra quiet motor.
- Integrated Battery Backup – sold separately
- Compliant with California state regulations. Energy-Efficient LED Lighting Long life, dimmable LED light panels included. Secure.
- Secure, Responsive Remote Control
- Linear MegaCode remote controls operate over long range and employ high-security technology.
- Easy Door Release
- Release the operator’s quick-disconnect trolley to open or close the garage door manually.
- Self-Diagnostic System
- The self-diagnostic system continually checks and confirms proper operation, and alerts users both audibly and flashing the lights. In the unlikely event of a problem, it pinpoints the trouble and alerts users by flashing the courtesy lights.
- Linear ® Smart App
- Advanced real-time monitoring and control of garage doors from any mobile device. * Assign custom access and permissions for up to 10 authorized users, and schedule door and light operation.*Wi-Fi and internet connection required.
- LDCO 841 Includes:
- One MTS3 3-Button MegaCode Remote
- Wi-Fi Multi-Function Wall Control Station
- Obstacle-Sensing Safety Beams
Specifications
- Motor Warranty—-Lifetime
- Belt Warranty—-Lifetime
- Chain Rails Warranty––5 yrs
- Mechanical Parts Warranty—-5 yrs
- Electrical—-1 yr
- AC/DC—-DC
- Drive Type—-Belt or Chain
- Battery Backup—-Yes
- Lighting—-3 LED panels 4,100 Lumens total / 250 W equivalent
- Smartphone Control—-Yes
- Timer to Close—-Yes
- Soft Start/Stop—-Yes
- Opening Speed (in seconds)—-7

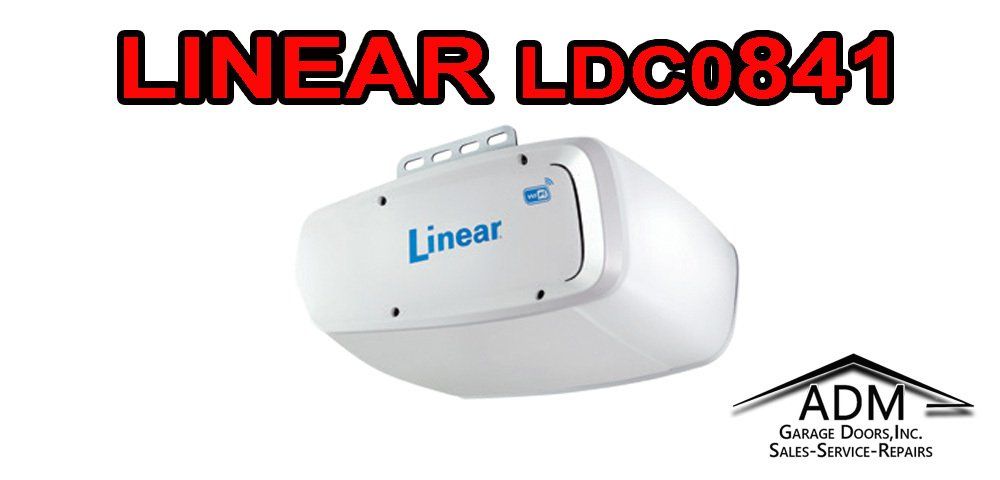

Linear LDCO841
Linear LDCO841
Our new smart garage door operator is not only visually appealing with its new modern, sleek design but is backed by the brain power of our advanced smart GDO technology
Features
- Ultra-Smooth and Quiet
- Industry leading performance with variable speed operation, soft start/stop, and ultra quiet motor.
- Integrated Battery Backup – sold separately
- Compliant with California state regulations. Energy-Efficient LED Lighting Long life, dimmable LED light panels included. Secure.
- Secure, Responsive Remote Control
- Linear MegaCode remote controls operate over long range and employ high-security technology.
- Easy Door Release
- Release the operator’s quick-disconnect trolley to open or close the garage door manually.
- Self-Diagnostic System
- The self-diagnostic system continually checks and confirms proper operation, and alerts users both audibly and flashing the lights. In the unlikely event of a problem, it pinpoints the trouble and alerts users by flashing the courtesy lights.
- Linear ® Smart App
- Advanced real-time monitoring and control of garage doors from any mobile device. * Assign custom access and permissions for up to 10 authorized users, and schedule door and light operation.*Wi-Fi and internet connection required.
- LDCO 841 Includes:
- One MTS3 3-Button MegaCode Remote
- Wi-Fi Multi-Function Wall Control Station
- Obstacle-Sensing Safety Beams
Specifications
- Motor Warranty—-Lifetime
- Belt Warranty—-Lifetime
- Chain Rails Warranty––5 yrs
- Mechanical Parts Warranty—-5 yrs
- Electrical—-1 yr
- AC/DC—-DC
- Drive Type—-Belt or Chain
- Battery Backup—-Yes (#BATT54 Sold Seperately
- Lighting—-1 LED panel 1,300 Lumens total / 100 W equivalent
- Smartphone Control—-Yes
- Timer to Close—-Yes
- Soft Start/Stop—-Yes
- Opening Speed (in seconds)—-7

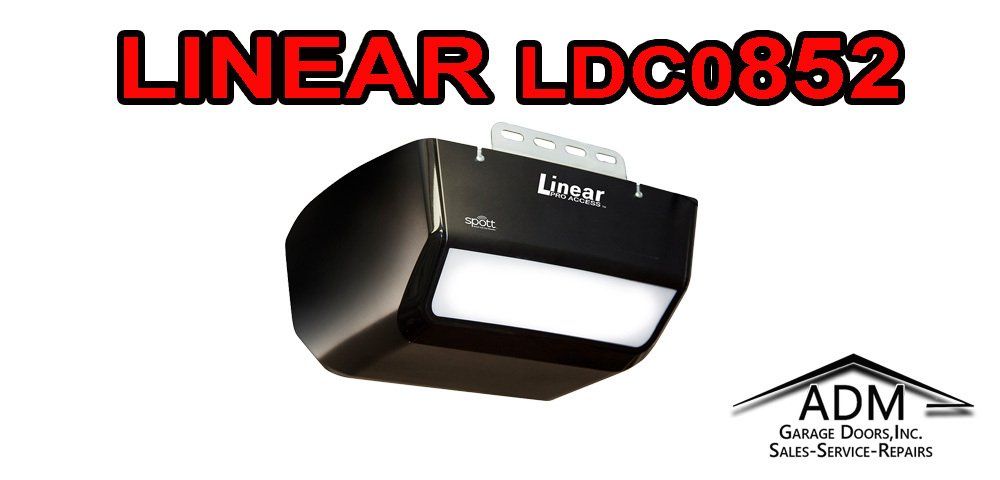

Linear LDCO852
Linear LDCO852
The smart operator with an ultra-quiet, energy-efficient, DC-powered motor that runs at an AC-equivalent speed. Our smart technology provides monitoring and control anytime, anywhere with Wi-Fi connectivity. Smooth, quiet, long-term reliable. Included Battery Backup for peace of mind, plus smart wall station and three-channel transmitter.
Features
- Wi-Fi connectivity with our free Linear app
- Real-time monitoring and control of garage door — anywhere, anytime
- Your garage door opens when you arrive home and closes when you leave — hands free
- Up to ten authorized users
- Set custom access and permissions for each user
- Scheduling of door and light operation, including timed, automatic door closing
- Compatible with Amazon Alexa™, Google Assistant™ and IFTTT™
- Ultra-smooth, quiet performance thanks to variable speed operation
- Two dimmable LED light panel, 200W equivalent, energy efficient
- Integrated battery backup included for peace of mind
- Self-diagnostic, self-adjusting system continually checks for proper operation
- Compatible with HomeLink™American engineering and quality assurance
- Low-power standby mode dramatically reduces energy consumption
- Supplies 800 Newtons of lifting force for heavy doors
- Recommended with belt-drive or chain-drive T or I beam rails of 7′ or 8′
- Built-in MegaCode format receiver
- Operator comes with three-button MTR3 visor transmitter and LPWWS wall station
Specifications
- Motor Warrant–Lifetime
- Belt Warrant–Lifetime
- Chain Rails Warranty–5 yrs
- Mechanical Parts Warrant–5 yrs
- Electrical–1 yr
- Overall Length with HBT7C/HCT7C–124.5″
- Overall Length with HBT8C/HCT8C–139″
Length of Operator
7FT- 124.5″
8FT- 139″

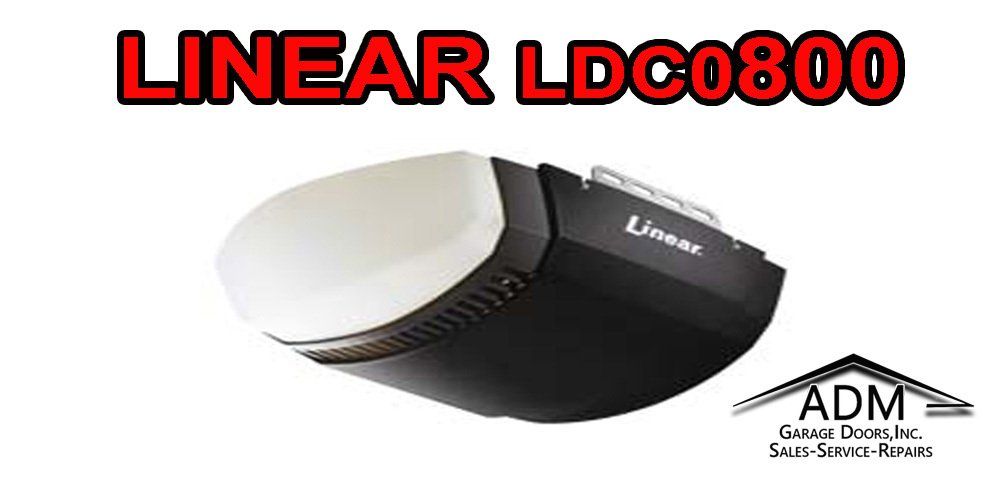

Linear LDCO800
Linear LDCO800
The energy-efficient, DC-powered operator that runs at an AC-equivalent speed. DC drive motor with soft-start and soft-stop for smooth, quiet, long-term reliable performance. Optional Battery Backup available for added peace of mind.
Features
- Superior, eco-friendly design
- Smooth start and soft stop for ultra-quiet operation
- Low-power standby mode dramatically reduces energy consumption – STANDBY MODE NOT AVAILABLE ON OPERATORS MANUFACTURED AFTER DECEMBER 1, 2020
- Supplies 800 Newtons of lifting force for heavy doors
- Compatible with belt-drive or chain-drive T or I beam rails up to 10′
- Intelligent, self-learning, self-adjusting, torque settings
- 100-watt courtesy light (bulb not included)
- Built-in MegaCode format receiver
- Operator includes three-button MCT-3 visor transmitter and deluxe illuminated wall station
- Battery Backup Compatible
Specifications
- Motor Warrant–Lifetime
- Belt Warrant–Lifetime
- Chain Rails Warranty–5 yrs
- Mechanical Parts Warrant–5 yrs
- Electrical–1 yr
- Overall Length with HBT7C/HCT7C–124.5″
- Overall Length with HBT8C/HCT8C–139″
- Overall Length with HCT10C–159.5″
Length of Operator
7FT- 124.5″
8FT- 139″
What do I have in my vehicle HomeLink or Car2U?
